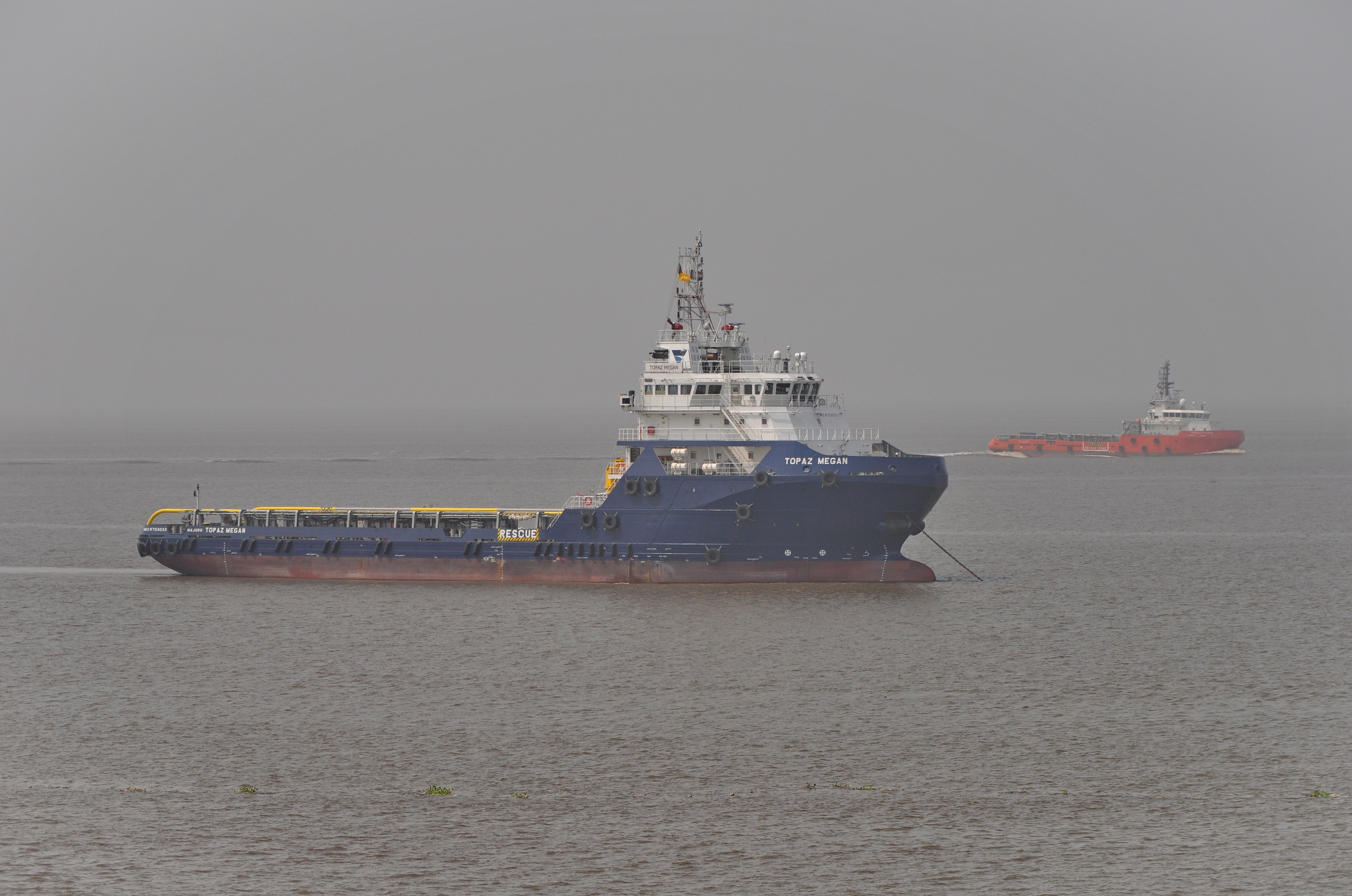

One of Swire's boats is steaming at the background 'Pacific Pv...' and new build Topaz's PSV Topaz Megan at anchor.
This PSV is one of series Topaz Daughter class vessels: Amani / Faye / Isra / Megan / Seema / Sophie / Xara.
ICS Quebec flag at the mast.
Нажмите для раскрытия...
Тип идентификатора
IMO
Идентификатор
9703033
Расположение судна
Гвинейский залив, Камерун
Главный двигатель
Niigata 8L28HX
Оператор
DOHA MARINE SERVICES WLL
Собственник
TEAM XXXVI LTD
Год постройки
2014

Другие фотографии судна

TOPAZ MEGAN
TOPAZ MEGAN
Orion
Some details of PSV (from vessel specs file):

Registration
  • Year built / Builder 2013, Fujian Southeast Shipyard / Xiamen Shipbuilding Industry Company Limited
  • Class ABS ✠ A1 (E) Offshore Support Vessel, Fire Fighting Vessel Class 1, HNLS, OSR-C, ✠ AMS, ACCU, DPS-2, SPS notation

Dimensions
  • Length overall 75 m
  • Length waterline 72.88 m
  • Lenth between perpendicular 67.85 m
  • Breadth moulded 17.25 m
  • Depth moulded 8 m
  • Draft designed 6.5 m
  • Deadweight 3300 t approx @ max draft
  • Registered tonnage GRT 2950 t / NRT 885 t

Machinery
  • Main engine 2 x Niigata 8L28HX3000HP @ 750 RPM
  • Propulsion 2 x FPP (Schottel / Niigata)
  • Bow thrusters 2 x 10 t thruster, approx 600 kw, FPP (Kawasaki Wuhan)
  • Steering gear Niigata Z-peller
  • Main generators 3 x CAT 450 kw diesel-driven, 415 v / 3p h / 50 hz
  • Shaft generators 2 x 1000 kw, 415 v / 3ph / 50 hz (Leroy Somer / Seimens)
  • Emergency generator 1 x CAT 80 kw diesel-driven
  • Rudders Z-peller
  • Rudder propellers 1 x Niigata azimuth rudder propeller with fixed pitch
  • DP Equipment DP2 system Kongsberg / Alstom / MT Nautronix

Capacities
  • Fuel oil 700 m3 approx
  • Fresh water 560 m3 approx
  • Drill water / SWB 1600 m3 approx
  • Dirty oil 10 m3 approx
  • Bulk cement Total about 226 three cement tanks each of 2200 ft3 and one of 1795 ft3
  • Foam 12 m3 approx
  • Detergent 12 m3 approx
  • Lub oil 10 m3 approx
  • Sewage holding tank 15 m3 approx
  • Bilge holding 10 m3 approx
  • Methanol 150 m3 approx
  • Mud / Brine / Rec oil 740 m3 approx
  • Oily water separator 1 x 1 m3 per hour
  • Water maker 2 x 10 t per day
  • Sewage treatment plant 1 x 50 men per day
  • Deck area 700 m2 minimum
  • Deck cargo 1200 t
  • Deck strength 5.5 t per m2 uniform loading

Performance
  • Maximum speed 13 knots
  • Economical speed 10 knots
  • Endurance 28 days approx.
  • Range About 8500 nautical miles at 12 knots

Discharge rates
  • Bilge pump 60 m3 per hour @ 50 m
  • Ballast pump 80 m3 per hour @ 70 m
  • Sludge oil pump 5 m3 per hour @ 29 m
  • Lubricating oil pump 2 nos. for stand by
  • Fuel oil transfer pump 2 x 20 m3 per hour @ 20 m
  • Mud pump for liquid mud 2 x 75 m3 per hour @ 90 m
  • Fuel oil cargo pump 2 x 150 m3 per hour @ 80 m
  • Methanol system 75 m3 per hour @ 90 m
  • Drill water pump 1 x 100 m3 per hour @ 80 m
  • Fresh water cargo pump 1 x 100 m3 per hour @ 85 m
  • Fire pumps 2 x 1790 m3 per hour @ 12 bar

Deck equipment
  • Anchor windlass 1 x 13 t @ 18 m per min for 46 mm chain, electro hydraulic (Plimsoll / Mentrade)
  • Bow anchors 2 x 1980 kg Stockless Bower Anchor
  • Chains 2 x 467.5 m (length) x 46 mm (diametre), Grade U2
  • Capstans 2 x 10 t @ 25 m per min, electro hydraulic (Plimsoll / Mentrade)
  • Tugger winch 2 x 10 t @ 24 m per min, electro hydraulic (Plimsoll / Mentrade)
  • drum capacity 250 m x 19 & 22 mm diameter
  • Deck crane 1 x 7.5 t @ 10 m

Navigation and communication
  • Inmarsat C 1 x Furuno Felcom-15
  • GMDSS A1, A2 & A3 / RC-1800T / Furuno
  • Radars 2 x Furuno FAR 2117 and FAR 2137
  • DGPS 1 x Furuno GP-150
  • AIS 1 x JRC / Furuno
  • Autopilot 1 x Anschutz / BST:1975
  • Navtex receiver 1 x Furuno NX-700B
  • Gyro compass 3 x Anschutz / BST:2217
  • Magnetic compass 1 x SCH105 / Lilley & Gillie
  • Telephone Fitted, self-powered
  • PA system Fitted
  • Echo sounder 1 x Furuno FE-700
  • VHF radios 2 x Furuno / FM8800
  • Portable VHF radios 3 x McMurdo R2
  • SART 2 x McMurdo RT9
  • Speed log 1 x Furuno DS-80
  • Weather fax 1 x Furuno
  • Wind indicator 1 x JRC / Furuno
  • EPIRB 1 x McMurdo E5
  • Joystick 1 x Kongsberg / Alstom / MT Nautronix

Life saving equipment
  • Life rafts 6 x 25 men, SOLAS standard
  • Life jackets (w/ lights) 73 x SOLAS approved
  • Life buoys 8
  • Immersion suits As per SOLAS standards
  • Pyrotechnics 1 x line throwing apparatus
  • 12 x parachute distress rockets
  • 2 x orange smokes
  • 2 x self igniting ights
  • Rescue boat 1 x 6 men
  • First aid kit 1 x 25 men

Fire-fighting equipment
  • External
    • FiFi system Class 1 with water curtain all around
    • Fire pump 2 x 1790 m3 per hour @ 12 bar each
    • Monitors 2 x fire monitors 1200 m3 per hour each
    • Fireman’s outfit 4 sets
    • Oil dispersant system 2 x cluster nozzles or overhang system
  • Internal
    • Emergency fire pump 1 x 35 m3 per hour x 50 m head
    • BA recharging compressor 1 x 200 litres per min @ 200 bar
    • CO2 system in engine room
    • Fire detection and alarm in living spaces and engine room.
Accommodation
  • Crew
    • 14 x 1-berth cabins = 14
    • 17 x 2-berth cabins = 34
    • Total 48
All cabins are fully air-conditioned and c/w attached washroom.
---
Source https://pomaritime.com/wp-content/uploads/2020/05/topaz-daughter-class-vessel-spec-aug2017-v2.pdf
For latest vessel details please contact the shipowner.
